T1N Clamp, Fuel Elbow Hose #1, One (2004-06 Vans)[OM647]

This is one of the two types of clamps to fasten the fuel hoses that flow into and out of the High Pressure Fuel Pump (HPFP).

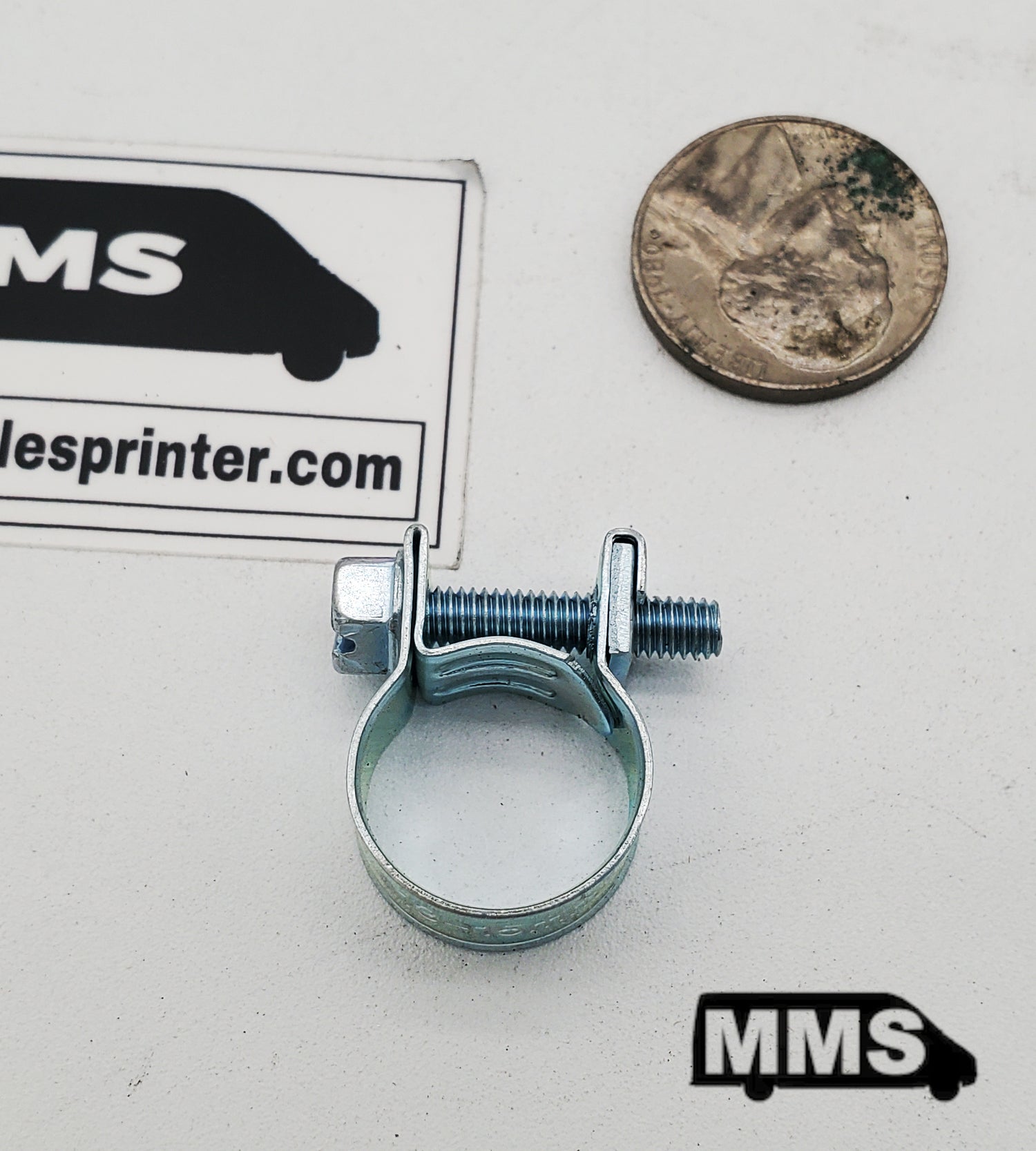

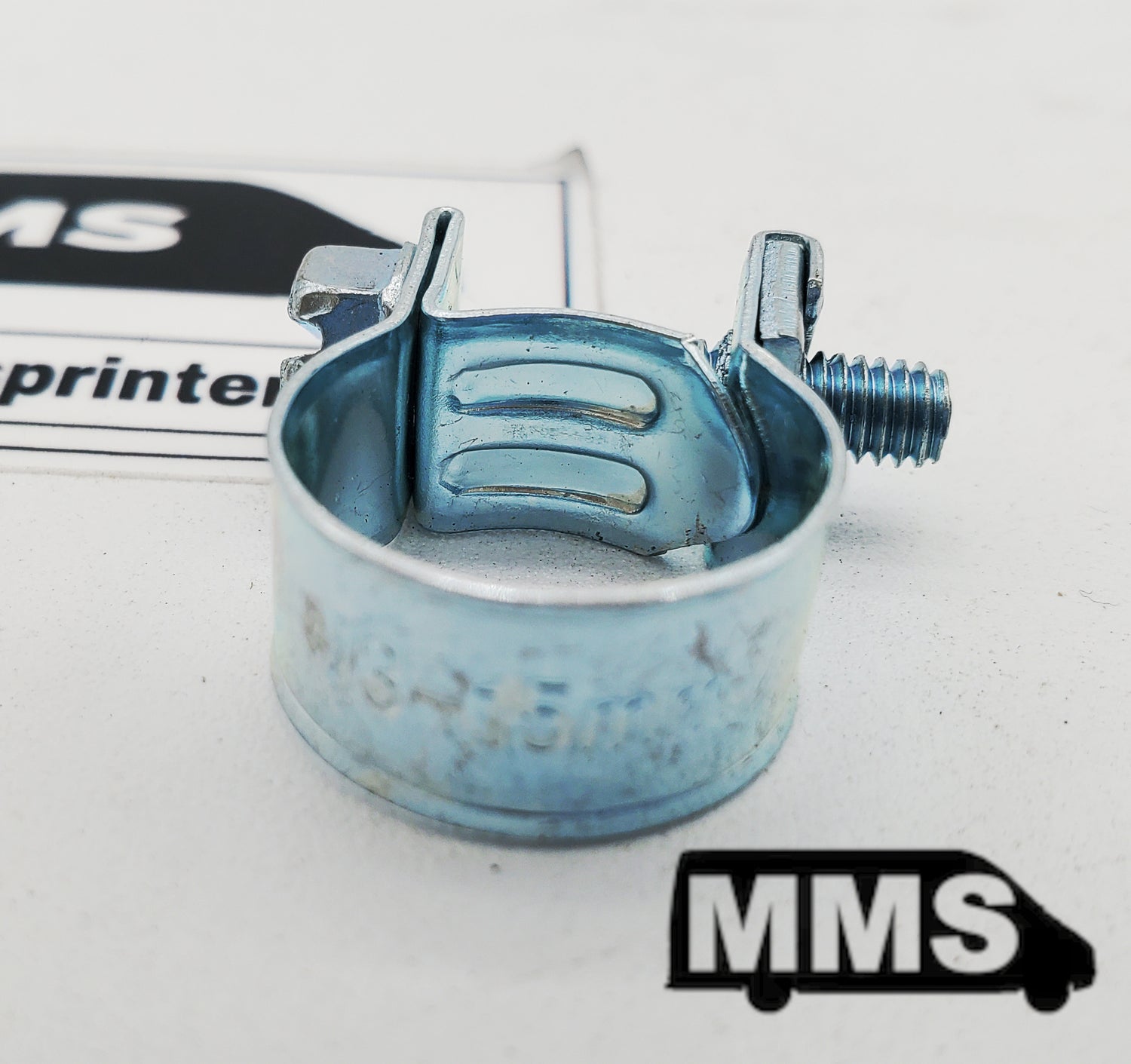

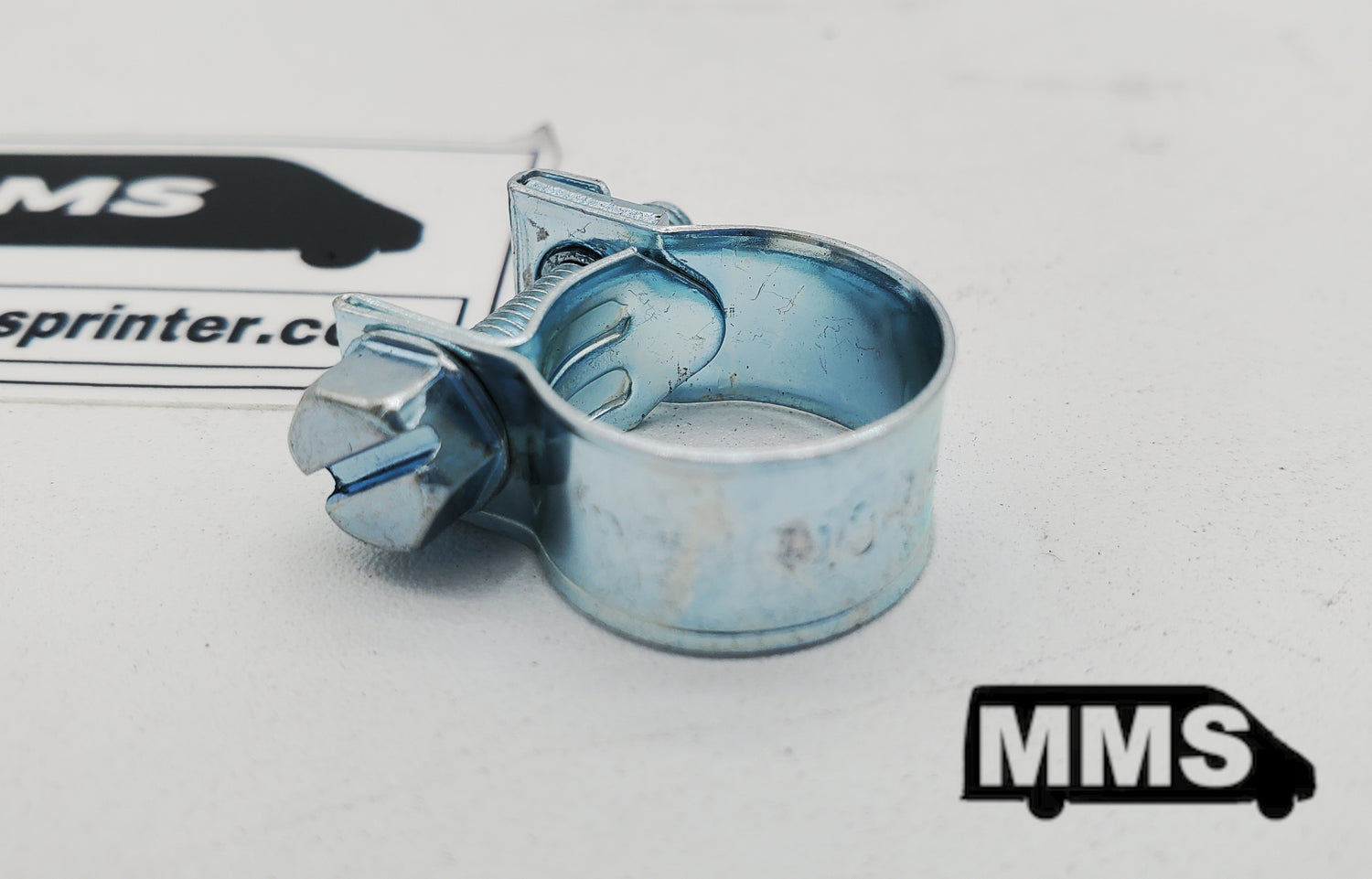

This sale is for a singular (1) clamp, the smaller clamp (13mm - 16mm) to use with this fuel hose. You need two of these smaller clamps.

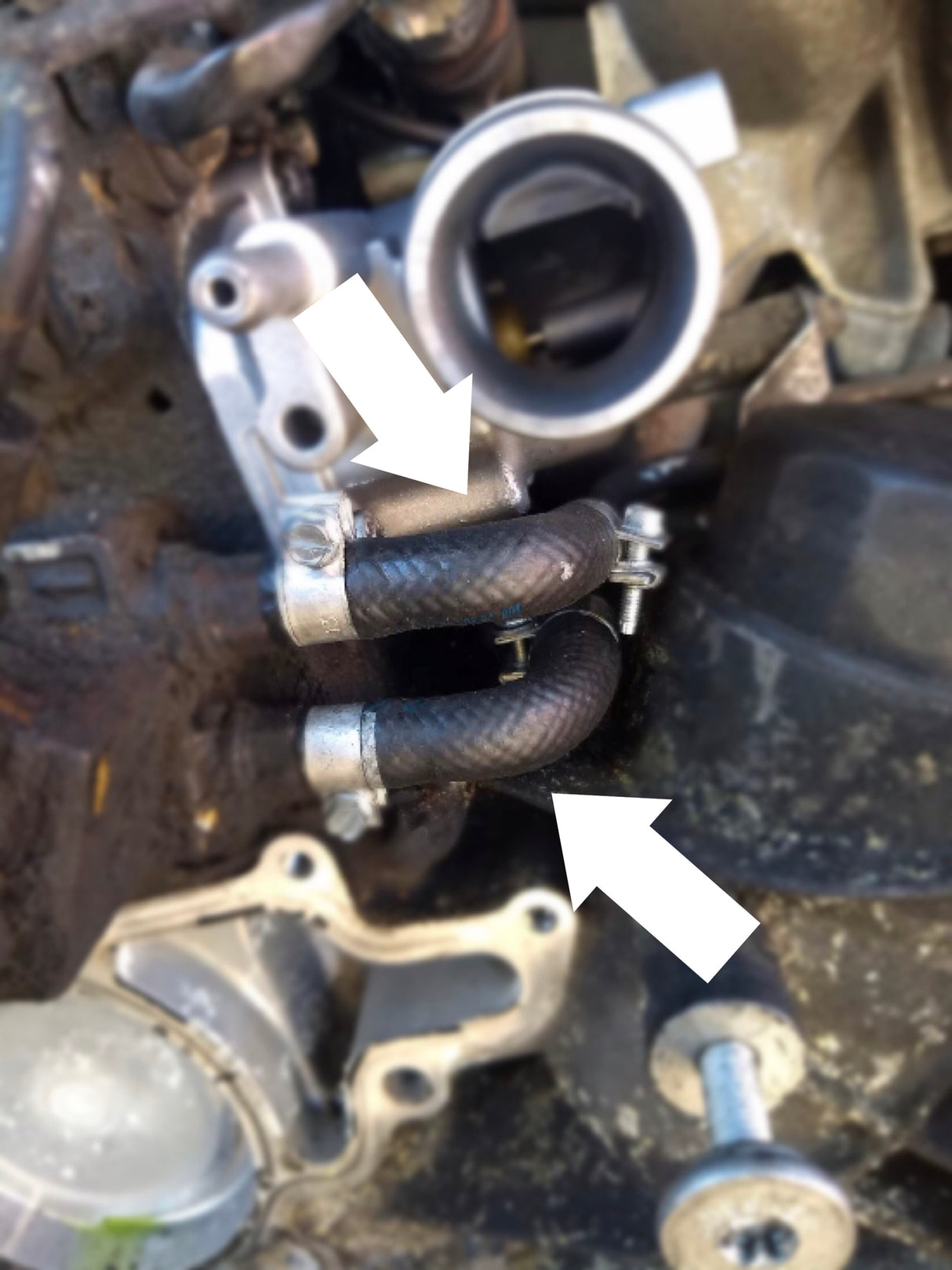

The elbow fuel hoses are located on the driver's side of the High Pressure Fuel Pump (HPFP) and, after a decade of use, they can begin to leak.

The backside of the HPFP is also prone to leakage but that can be prevented by just removing the HPFP and tightening the 4 bolts on the back of it.

You have to remove the two fuel elbow hoses to fully remove the HPFP. Doing this can also cause stress to the aged hoses and they can begin to leak! What a mess. Prevent these leaks by tightening the bolts on the back of the HPFP and replacing these fuel lines at the same time!

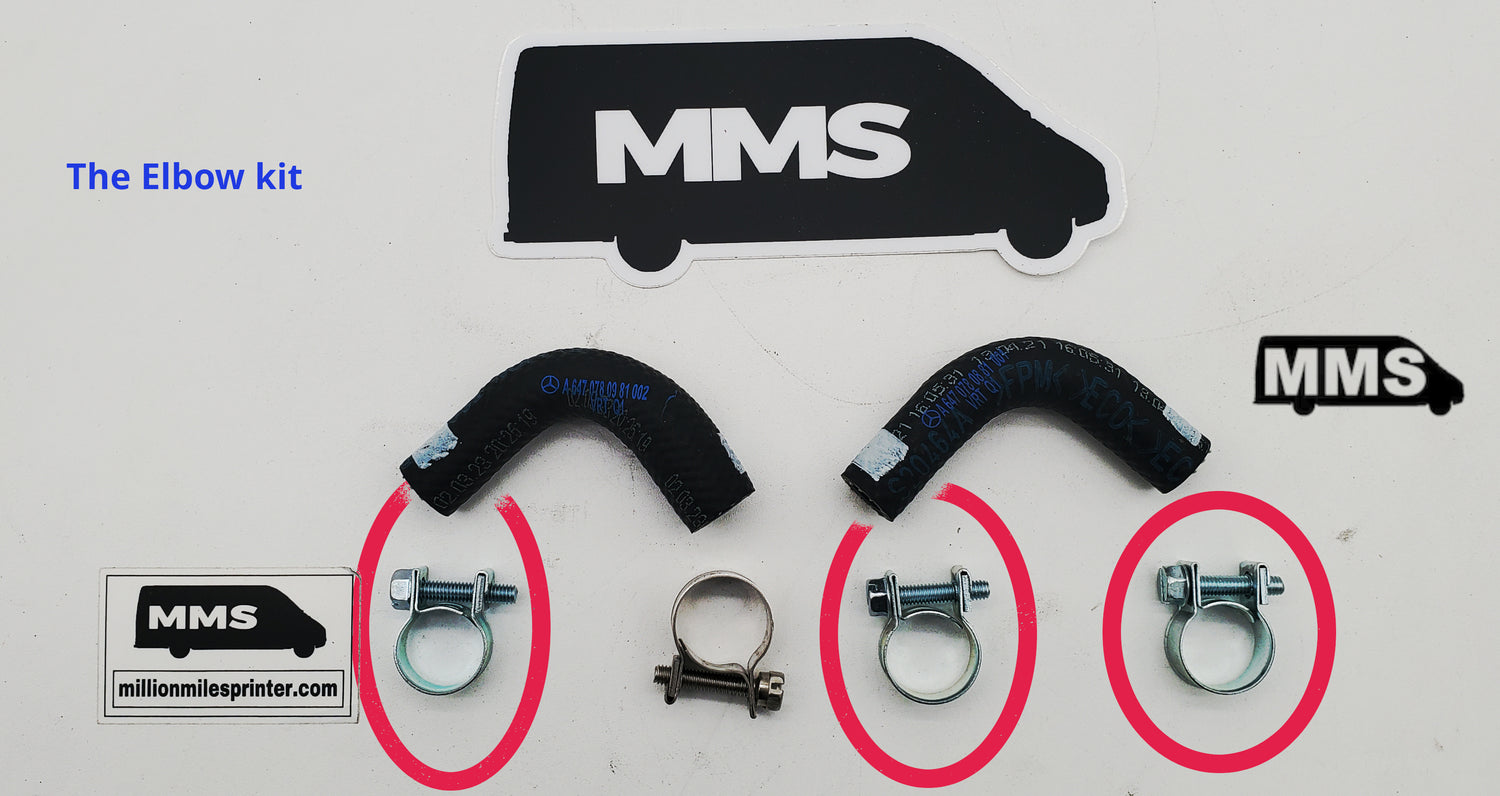

Get the entire elbow fuel hose kit with clamps here!

*if you are already doing the 120K cooling maintenance kit, this fuel leak preventative maintenance job is very easy to do because the HPFP and fuel hose elbows are already easily accessible.
